Reinforcement Polyester Tyre Cord Fabric | Dipped HMLS Yarn | 1000D to 2000D for Rubber Products
What Makes It Good:
Strong: The thick 1000 to 2000 denier yarns provide high breaking strength.
Sticky (when needed): The brown dip coating is specifically designed to grip rubber tightly.
Stable: Resists stretching, so your tyres keep their shape.
Quick Specs:
Material: HMLS Polyester
Construction: 1000D/2, 1500D/2 (Two-ply cords)
Appearance: Woven fabric with a brown resin coating
Width: Approx. 150cm (60 inches)
Common Uses:
Making new passenger and truck tyres
Retreading worn tyre casings
Manufacturing rubber conveyor belts
Reinforcing rubber hoses and air springs

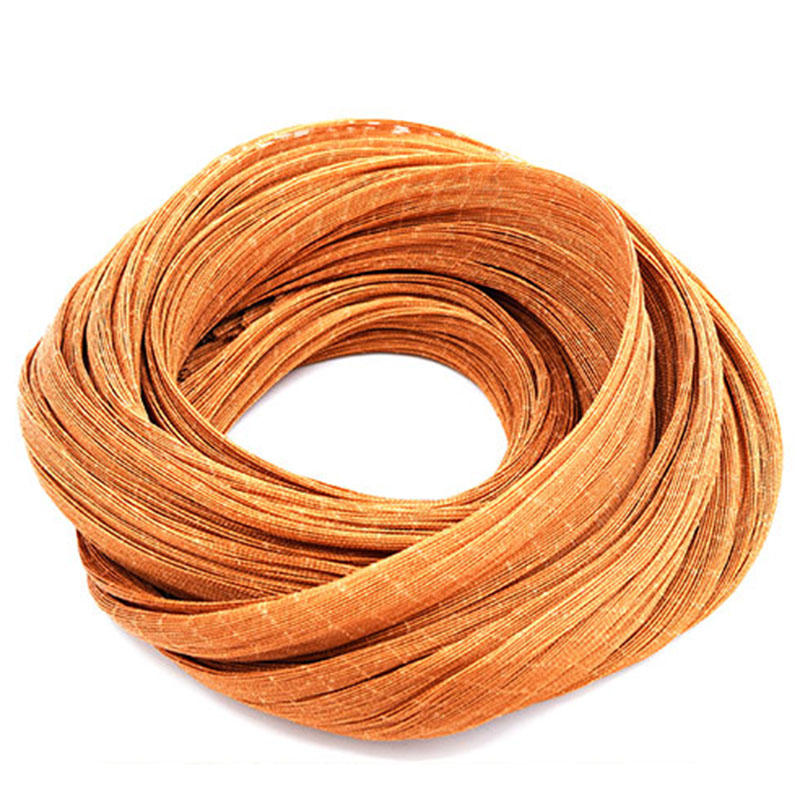

This Polyester Tyre Cord Fabric serves as the critical backbone for modern tyre manufacturing and rubber reinforcement. Designed to provide maximum structural integrity, this fabric acts as a stress-bearing component that helps tyres maintain their shape under heavy loads, high speeds, and extreme temperatures.
The Technology Behind the Fabric:
The
fabric is constructed using High Modulus Low Shrinkage (HMLS) polyester
yarns, which are specifically chosen for their ability to resist
deformation. Each cord is then subjected to a high-precision dipping
process using advanced RFL chemistry. This treatment creates a chemical
bridge between the polyester and rubber, ensuring they function as a
single, unified structure rather than separate layers.
Product Highlights:
Dimensional Stability: The HMLS technology minimizes growth and flattening of tyres during high-speed operation, improving handling and safety.
Heat Resistance: Engineered to retain strength and resist degradation in the high-temperature conditions generated by moving vehicles.
Flex Life: Optimized for repeated bending and flexing without cracking or losing tensile strength, making it suitable for dynamic applications like sidewalls and conveyor belts.
Consistent Quality: Manufactured under strict quality controls to ensure uniform tension and adhesion across the entire fabric roll.
Available Constructions:
Yarn Types: 1000D/2, 1500D/2, 2000D/2 High Tenacity Polyester
Finish: Pre-dipped and heat-set, ready for calendaring
Width: Standard 1.5m (approx. 60") and custom widths
Color: Standard brown dip, other colors available
Primary Uses:
Automotive: Passenger Car Radial (PCR) and Truck/Bus Radial (TBR) tyres
Industrial: Heavy-duty conveyor belting for mining and aggregate handling
Specialty: High-pressure hoses, timing belts, and air springs
Packaging Details:
Rolls are wound on sturdy cores with protective wrapping to prevent moisture ingress and mechanical damage during transit.
NO. |
ITEM |
UNIT |
1300D/2 |
1000D/3 |
1500D/2 |
2000D/2 |
1300D/3 |
|
(1440dtex/2) |
(1100dtex/3) |
(1670dtex/2) |
(1870dtex/1) |
(1440dtex/3 |
||||
1 |
Ave Breaking strength (min) |
N/end |
180 |
205 |
205 |
280 |
260 |
|
2 |
Elongation at a certain load |
% |
4.5+1.0 (66.6 N) |
4.5±1.0 (66.6 N) |
4.5±1.0 (66.6 N) |
4.5±1.0 (88.2 N) |
4.5±1.0 (88.2 N) |
|
3 |
Adhesion (H-test) (min) |
N/cm |
135 |
140 |
140 |
170 |
165 |
|
4 |
Breaking strength CV (max) |
% |
4 |
4 |
4 |
4 |
4 |
|
5 |
Breaking elongation CV (max) |
% |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
|
6 |
Dip pick up |
% |
3.0±1 |
3.0±1 |
3.0±1 |
2.5±1 |
2.5±1 |
|
7 |
Breaking elongation (min) |
% |
13 |
13 |
13 |
13 |
13 |
|
8 |
Diameter |
mm |
0.61±0.03 |
0.66±0.03 |
0.66±0.03 |
0.75±0.03 |
0.74±0.03 |
|
9 |
Twist |
Single (Z) |
T/10cm |
40±1.5 |
37±1.5 |
37±1.5 |
33±1.5 |
33±1.5 |
Ply twist (S) |
40±1.5 |
37±1.5 |
37±1.5 |
33±1.5 |
33±1.5 |
|||
10 |
Hot air shrinkage 160℃×2min x 0.05CN/dtex (max) |
% |
2 |
2 |
2 |
2.5 |
2.5 |
|
11 |
Elongation at Breaking of weft yarn(min) |
% |
120 |
120 |
120 |
120 |
120 |
|
