TBR Mechanical Drum – Engineered for Heavy Loads, Built for Precision
Truck and bus radial (TBR) tire manufacturing demands equipment that can withstand extreme forces while maintaining micron-level precision. The tire building drum is the heart of the TBR tire assembly process – supporting the carcass, positioning components, and shaping the tire before vulcanization.
At Weixin, our TBR Mechanical Drum is engineered specifically for heavy-load applications. With all-steel construction, optional airbag expansion mechanisms, and precision-machined components, this drum delivers the durability and accuracy required for high-quality TBR tire production.
Why TBR Tire Building Requires Specialized Drums
Unlike passenger car tires, TBR tires (for trucks, buses, and heavy commercial vehicles) face unique manufacturing challenges:
| Challenge | Requirement |
|---|---|
| High carcass weight | Drum must support heavy components without deflection |
| Large tire diameters | Drum must maintain concentricity at extended widths |
| High expansion forces | Expansion mechanism must operate smoothly under load |
| Repeatable precision | Every tire must meet dimensional tolerances for balance and uniformity |
| Demanding duty cycles | Drum must survive years of continuous industrial operation |
Weixin TBR Mechanical Drums are designed to meet every requirement.
Product Overview

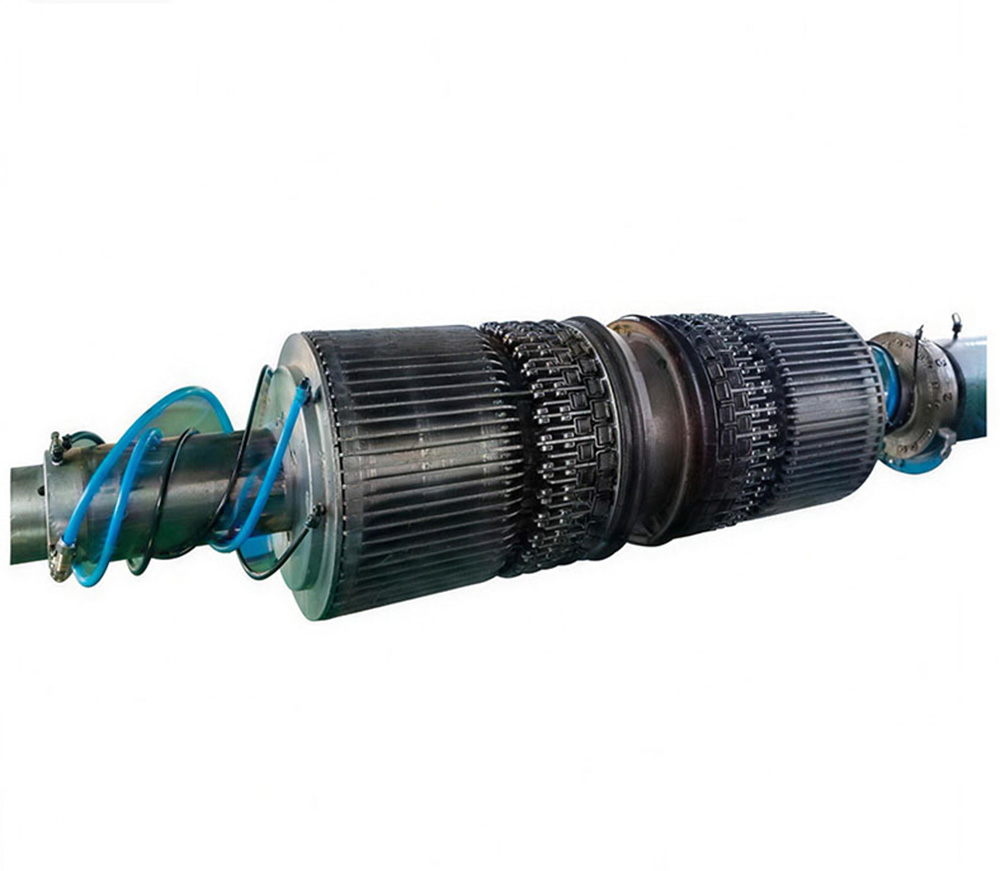

Weixin TBR Mechanical Drum is a precision-engineered tire building drum for radial truck and bus tire manufacturing. The drum features an all-steel body, mechanically actuated expansion segments, and optional airbag-assisted expansion for uniform tire body assembly.
| Parameter | Specification |
|---|---|
| Tire types | TBR (truck and bus radial), heavy truck, light truck |
| Drum construction | Full steel body and segments |
| Expansion mechanism | Mechanical (linkage or cam) + optional airbag assist |
| Segment configuration | Multi-segment for uniform expansion |
| Surface coating | Hard chrome or anti-rust treatment |
| Compatibility | Standard TBR tire building machines |
Key Features
1. All-Steel Construction for Maximum Durability
The complete drum body, expansion segments, and guide mechanisms are manufactured from high-strength steel. This provides:
Resistance to deformation under heavy carcass loads
Long service life in high-cycle manufacturing environments
Dimensional stability across temperature variations
2. Precision Machining for Accurate Tire Geometry
Every critical surface and mating interface is machined to tight tolerances:
| Tolerance | Weixin Standard |
|---|---|
| Concentricity | ≤ 0.1 mm |
| Segment-to-segment fit | ≤ 0.05 mm gap |
| Axial runout | ≤ 0.1 mm |
| Expansion diameter repeatability | ±0.2 mm |
These tolerances translate to better tire uniformity, balance, and dimensional consistency.
3. Optional Airbag Expansion Mechanism
For demanding TBR applications, Weixin offers an airbag-assisted expansion system:
Airbag deployment – Provides gentle, uniform radial force
Mechanical backup – Positive stop ensures repeatable diameter
Uniform carcass support – Eliminates flat spots or unevenness during tire assembly
The combination of mechanical and airbag expansion delivers both precision and uniformity.
4. Smooth, Reliable Mechanical Actuation
The primary expansion mechanism uses hardened steel linkages or cam systems:
Low maintenance – No complex hydraulics or pneumatics (except optional airbag)
Positive positioning – Mechanical stops ensure exact diameter every cycle
High cycle life – Tested to millions of expansion/contraction cycles
5. Segmented Design for Uniform Expansion
Multi-segment drum configuration ensures that expansion force distributes evenly across the entire drum circumference:
No gaps or uneven expansion between segments
Consistent carcass support during tire building
Reduced risk of tire non-uniformity
Available Models
| Model | Diameter Range (mm) | Width Range (mm) | Expansion Type | Recommended Tire Sizes |
|---|---|---|---|---|
| TBR-M-01 | 450–550 | 400–800 | Mechanical | Light truck, small bus |
| TBR-M-02 | 500–650 | 500–1000 | Mechanical + optional airbag | Standard truck, regional bus |
| TBR-M-03 | 600–800 | 600–1200 | Mechanical + airbag (standard) | Heavy truck, long-haul |
| TBR-M-04 | 700–950 | 700–1400 | Mechanical + airbag (standard) | Extra-heavy, mining, OTR |
Custom diameters and widths available upon request.
Optional Airbag System Details
For models equipped with the airbag expansion assist:
| Parameter | Value |
|---|---|
| Airbag material | High-strength reinforced rubber |
| Operating pressure | 0.4–0.8 MPa |
| Expansion force assist | Uniform radial distribution |
| Cycle life | ≥ 500,000 cycles |
| Maintenance | Replaceable airbag cartridge |
The airbag provides gentle, progressive expansion – ideal for TBR carcasses requiring uniform ply laydown without distortion.
The TBR Tire Building Process with Weixin Drum
| Step | Operation | Drum Role |
|---|---|---|
| 1 | First carcass ply application | Drum supports at building diameter |
| 2 | Body ply and sidewall placement | Uniform surface for component laydown |
| 3 | Bead placement | Drum provides reference for bead positioning |
| 4 | Bladderless or bladder shaping | Drum expands (mechanical + airbag) to shaping diameter |
| 5 | Belt and tread application | Drum maintains concentricity at final diameter |
| 6 | Transfer to curing press | Drum contracts smoothly for tire removal |
Weixin drums maintain consistent geometry through all six steps.
Comparison: Weixin TBR Drum vs. Standard Drums
| Feature | Standard Steel Drum | Weixin TBR Mechanical Drum |
|---|---|---|
| Construction | Welded or bolted steel | Integrated all-steel design |
| Concentricity tolerance | ±0.2–0.3 mm | ≤ 0.1 mm |
| Segment fit | Moderate | Precision-matched (≤ 0.05 mm gap) |
| Expansion mechanism | Basic linkage | Hardened linkage + optional airbag |
| Airbag assist availability | Rare | Standard on heavy-duty models |
| Cycle life (millions of expansions) | 3–5 million | 8–12 million |
| Maintenance interval | Every 6–12 months | Every 18–24 months |
| Typical tire uniformity contribution | Baseline | Improved (due to tighter tolerances) |
Durability and Testing
Every Weixin TBR Mechanical Drum undergoes rigorous testing before shipment:
| Test | Standard | Acceptance Criteria |
|---|---|---|
| Concentricity check | Weixin internal | ≤ 0.1 mm runout |
| Expansion diameter repeatability | 100 cycles measured | ±0.2 mm max deviation |
| Load test | 150% of rated carcass weight | No deflection or binding |
| Cycle endurance | Accelerated life test | Equivalent to 5 million cycles |
| Surface hardness | Rockwell HRC | ≥ 50 on segment surfaces |
Installation and Compatibility
Weixin TBR Mechanical Drums are designed to be:
Retrofit-ready – Fit standard TBR tire building machine interfaces
Mounting adaptable – Custom mounting flanges available for most machine brands
Serviceable – Segments and airbag (if equipped) replaceable without full drum disassembly
Please provide your machine make and model for compatibility confirmation.
Maintenance and Service Life
Routine maintenance (every 6 months):
Clean segments and guide surfaces
Lubricate mechanical linkages
Inspect airbag for wear (if equipped)
Check bolt torque on mounting connections
Major service (every 18–24 months):
Replace worn segments (if beyond tolerance)
Rebuild linkage pins and bushings
Replace airbag (if equipped)
Full concentricity re-certification
With proper maintenance, Weixin TBR drums typically last 8–12 years in continuous production.
Why Tire Manufacturers Choose Weixin TBR Drums
Heavy-load engineering – All-steel construction for TBR duty cycles
Precision manufacturing – Tight tolerances for tire uniformity
Optional airbag assist – Uniform expansion for consistent tire body assembly
Long service life – 8–12 million cycle capability
Retrofit compatible – Fits standard TBR building machines
Full technical support – Installation, maintenance, and spare parts
Case Example: TBR Tire Manufacturer Reduces Non-Uniformity
Customer: Large TBR tire manufacturer producing 5,000 tires/day
Previous drum: Standard mechanical drum with 0.25 mm concentricity
Problem: 3.5% rejection rate due to tire uniformity (high radial force variation)
Solution: Weixin TBR-M-03 with airbag assist and precision-ground segments
Results after 6 months:
Concentricity improved from 0.25 mm to 0.08 mm (68% improvement)
Radial force variation rejection rate: reduced from 3.5% to 1.2% (66% reduction)
Segment wear life: extended 40% compared to previous drums
Annual savings from reduced rejections: $280,000
Payback period on new drums: 4 months
The manufacturer converted all TBR building lines to Weixin drums within one year.
Ordering Information
To specify a Weixin TBR Mechanical Drum for your line, please provide:
Tire size range to be produced
Building machine make and model
Required drum diameter range (building diameter to shaping diameter)
Desired expansion mechanism (mechanical only or mechanical + airbag)
Mounting flange dimensions or drawing
Weixin will provide a compatibility check and drawing for approval before manufacturing.
Conclusion
TBR tire manufacturing demands drums that are strong enough for heavy loads and precise enough for uniform tire geometry. Weixin TBR Mechanical Drums deliver both – all-steel construction, precision machining, optional airbag-assisted expansion, and long service life.
Engineered for heavy loads. Built for precision.
Choose Weixin for your TBR tire building line.
Contact Weixin today to discuss your TBR drum requirements or request a compatibility review.
