High Tenacity Sewing Thread – Strength That Holds Under Pressure
When a seam fails, the consequences range from product damage to safety hazards. Industrial bulk bags dropping tons of material. Tarpaulins ripping open on highways. Lifting slings parting under load. In each case, the weak point was not the fabric – it was the thread.
At Weixin, our High Tenacity Sewing Thread is engineered to eliminate seam failure. With exceptional breaking strength, low elongation, and superior abrasion resistance, this thread holds when pressure builds – whether from fill weight, wind load, or dynamic tension.
What Is High Tenacity Thread?
High tenacity thread is defined by its exceptional strength-to-thickness ratio. Tenacity – measured in centinewtons per dtex (cN/dtex) – indicates how much force a thread can withstand relative to its linear density.
| Thread Type | Typical Tenacity (cN/dtex) |
|---|---|
| Standard commodity polyester | 4.5 – 5.5 |
| Industrial grade polyester | 5.5 – 6.0 |
| Weixin High Tenacity | 6.5 – 7.5 |
Weixin high tenacity thread delivers 30–60% more strength than standard threads at the same thickness. This means either:
Stronger seams at the same stitch density, or
Fewer stitches (higher productivity) at the same seam strength
Key Properties
| Property | Weixin High Tenacity Value |
|---|---|
| Breaking strength (Tex 70) | ≥ 4,200 cN |
| Tenacity | 6.5 – 7.5 cN/dtex |
| Elongation at break | 14 – 16% |
| Elongation at typical sewing tension | 2 – 4% |
| Abrasion resistance | Excellent (3,000+ cycles ASTM D6770) |
| UV resistance (standard grade) | 70 – 80% retention at 500h |
| UV resistance (UV-stabilized grade) | ≥ 90% retention at 500h |
| Thermal shrinkage (177°C) | ≤ 1.0% |
| Moisture regain | < 0.5% |
| Available tex range | Tex 40 – Tex 150 |
| Bonded option | Silicone or wax |
Product Range
| Grade | Tex Range | Breaking Strength (cN) | Recommended Applications |
|---|---|---|---|
| Weixin HT-40 | 40 – 50 | 2,400 – 3,000 | Light FIBCs (500–800 kg), standard tarpaulins |
| Weixin HT-60 | 55 – 65 | 3,500 – 4,000 | Medium FIBCs (800–1,200 kg), heavy tarpaulins |
| Weixin HT-70 | 66 – 80 | 4,200 – 5,000 | Standard FIBCs (1,200–1,500 kg), geotextiles |
| Weixin HT-90 | 85 – 100 | 5,000 – 6,500 | Heavy FIBCs (1,500–2,000 kg), conveyor belt edges |
| Weixin HT-105 | 101 – 120 | 6,500 – 7,500 | Extra-heavy FIBCs, lifting slings |
| Weixin HT-135 | 121 – 150 | 7,500 – 9,000 | Extreme duty, safety-critical applications |
Custom tex and constructions available upon request.
Engineering the Strength: Manufacturing Process
Weixin high tenacity thread begins with premium industrial-grade polyester yarn, then undergoes controlled twisting and optional bonding.
Step 1: Yarn Selection
High-molecular-weight polyester polymer
Optimized drawing for maximum molecular orientation
Virgin fibers only – no recycled content
Step 2: Twisting
Precision twist multiplier for strength vs. handling balance
Consistent twist uniformity along entire thread length
Step 3: Heat-Setting (for select grades)
Stabilizes twist
Reduces torque and liveliness
Improves dimensional stability
Step 4: Bonding (optional)
Silicone or wax coating
Permanent bond – does not flake or wear off
Reduces friction and needle heat
Step 5: Final Winding
Clean, uniform packages
No slubs, no weak spots, no contamination
Low Elongation: The Hidden Advantage
High strength alone is not enough. Thread that stretches under load allows seam slippage, bag deformation, and eventual failure.
Elongation comparison:
| Thread Type | Elongation at Break | Elongation at 20% of Break Load |
|---|---|---|
| Standard polyester | 18 – 22% | 5 – 7% |
| Nylon thread | 20 – 28% | 6 – 10% |
| Weixin High Tenacity | 14 – 16% | 3 – 4% |
Why low elongation matters:
| Application | Benefit of Low Elongation |
|---|---|
| FIBC bulk bag | Bag maintains shape during filling; no bulging |
| Tarpaulin | Seams stay tight under wind load |
| Geotextile | Seam strength matches fabric; no creep |
| Lifting sling | Predictable stretch; safety margin maintained |
Abrasion Resistance for Rough Handling
Industrial fabrics are dragged, dropped, and abraded. Thread that frays loses strength before the seam ever sees full load.
Abrasion test results (ASTM D6770, cycles to failure):
| Thread Type | Cycles to Failure |
|---|---|
| Standard polyester | 800 – 1,200 |
| Standard bonded polyester | 1,500 – 2,000 |
| Weixin High Tenacity (unbonded) | 2,000 – 2,800 |
| Weixin High Tenacity (bonded) | 3,000 – 4,000 |
Weixin high tenacity thread lasts 2–4x longer than standard thread in abrasive environments.
UV Stabilization for Outdoor Applications
Standard polyester thread loses 20–30% of its strength after 500 hours of sunlight exposure. For tarpaulins, truck covers, and outdoor bags, this is unacceptable.
Weixin offers two UV options:
| Grade | UV Retention (500h QUV) | Best For |
|---|---|---|
| Standard high tenacity | 70 – 80% | Indoor applications, short-term outdoor |
| UV-stabilized high tenacity | ≥ 90% | Long-term outdoor exposure (12+ months) |
UV-stabilized grade features:
Carbon black or UV-absorbing additives
Available in black (best UV protection) or custom colors
No sacrifice in breaking strength or elongation
Applications
FIBC Bulk Bags (Flexible Intermediate Bulk Containers)
| Bag Capacity | Recommended Grade | Why |
|---|---|---|
| 500 – 800 kg | HT-40 or HT-60 | Bottom seam strength critical |
| 800 – 1,200 kg | HT-70 | Standard industrial bulk bags |
| 1,200 – 1,500 kg | HT-70 or HT-90 | Heavy loads, repeated handling |
| 1,500 – 2,000 kg | HT-90 or HT-105 | Maximum fill weight |
Tarpaulins and Truck Covers
| Application | Recommended Grade | Key Requirement |
|---|---|---|
| Light truck tarp (short-term) | HT-40 | Adequate strength, low cost |
| Heavy truck tarp (long-term outdoor) | HT-60 or HT-70 + UV | UV resistance + strength |
| Industrial curtain tarp | HT-70 | Wind load resistance |
Geotextile Seaming
| Geotextile Weight | Recommended Grade | Why |
|---|---|---|
| Light (100–200 g/m²) | HT-60 | Seam matches fabric strength |
| Medium (200–400 g/m²) | HT-70 | Standard geotextile seaming |
| Heavy (400–600 g/m²) | HT-90 or HT-105 | High-strength applications |
Lifting Slings and Rigging
| Sling Capacity | Recommended Grade | Safety Note |
|---|---|---|
| Up to 1,000 kg | HT-90 | Redundant stitching recommended |
| 1,000 – 2,000 kg | HT-105 | Engineering supervision required |
| Over 2,000 kg | HT-135 | Custom engineering |
Conveyor Belt Edge Stitching
| Belt Type | Recommended Grade | Why |
|---|---|---|
| Light-duty belt | HT-60 | Edge fray prevention |
| Heavy-duty belt | HT-70 or HT-90 | Abrasion + tension |
Sandbags and Barrier Bags
| Application | Recommended Grade | Key Requirement |
|---|---|---|
| Standard sandbag | HT-40 (unbonded) | Economical, adequate strength |
| Heavy barrier bag | HT-60 or HT-70 | Impact filling resistance |
Bonded vs. Unbonded for High Tenacity Thread
Weixin high tenacity thread is available in both unbonded and bonded versions.
| Feature | Unbonded | Silicone Bonded | Wax Bonded |
|---|---|---|---|
| Breaking strength | Same | Same | Same |
| Coefficient of friction | 0.20 – 0.30 | 0.10 – 0.14 | 0.15 – 0.20 |
| Needle heat | Higher | Lowest | Low |
| Break rate at high speed | Baseline | 50–70% reduction | 30–50% reduction |
| Maximum speed (stitches/min) | ≤ 4,000 | ≤ 5,500 | ≤ 4,500 |
| Lint generation | Moderate | Very low | Low |
| Best for | Standard speed, cost-sensitive | High-speed automated lines | Leather, heavy fabrics |
Recommendation: For any line running above 3,500 stitches per minute, specify bonded high tenacity thread.
Technical Specifications (HT-70 Grade, Silicone Bonded)
| Parameter | Value | Test Method |
|---|---|---|
| Linear density (Tex) | 70 ± 2% | ISO 2060 |
| Breaking strength | ≥ 4,200 cN | ISO 2062 |
| Tenacity | ≥ 6.5 cN/dtex | Calculated |
| Elongation at break | 14 – 16% | ISO 2062 |
| Coefficient of friction (thread-to-metal) | 0.10 – 0.14 | Internal |
| Shrinkage (177°C, 2 min) | ≤ 1.0% | ISO 6330 |
| Moisture regain | < 0.5% | ASTM D629 |
| Abrasion cycles (ASTM D6770) | ≥ 3,000 | ASTM D6770 |
| Color fastness to light (UV-stabilized) | ≥ grade 6 | ISO 105-B02 |
| Package length (cone) | 2,500 – 5,000 m | – |
Quality Assurance
Every cone of Weixin high tenacity thread undergoes:
| Test | Frequency | Acceptance |
|---|---|---|
| Breaking strength | Every batch | ≥ Minimum spec |
| Elongation | Every batch | Within 14–16% range |
| Tex verification | Every cone | ±2% of nominal |
| Friction coefficient (bonded) | Every batch | Within 0.02 of target |
| Abrasion (sample) | Per production run | ≥ 2,500 cycles |
| UV retention (UV grade) | Per formulation | ≥ 90% at 500h |
| Visual inspection | 100% of cones | No defects, clean winding |
Full traceability from raw yarn to finished cone.

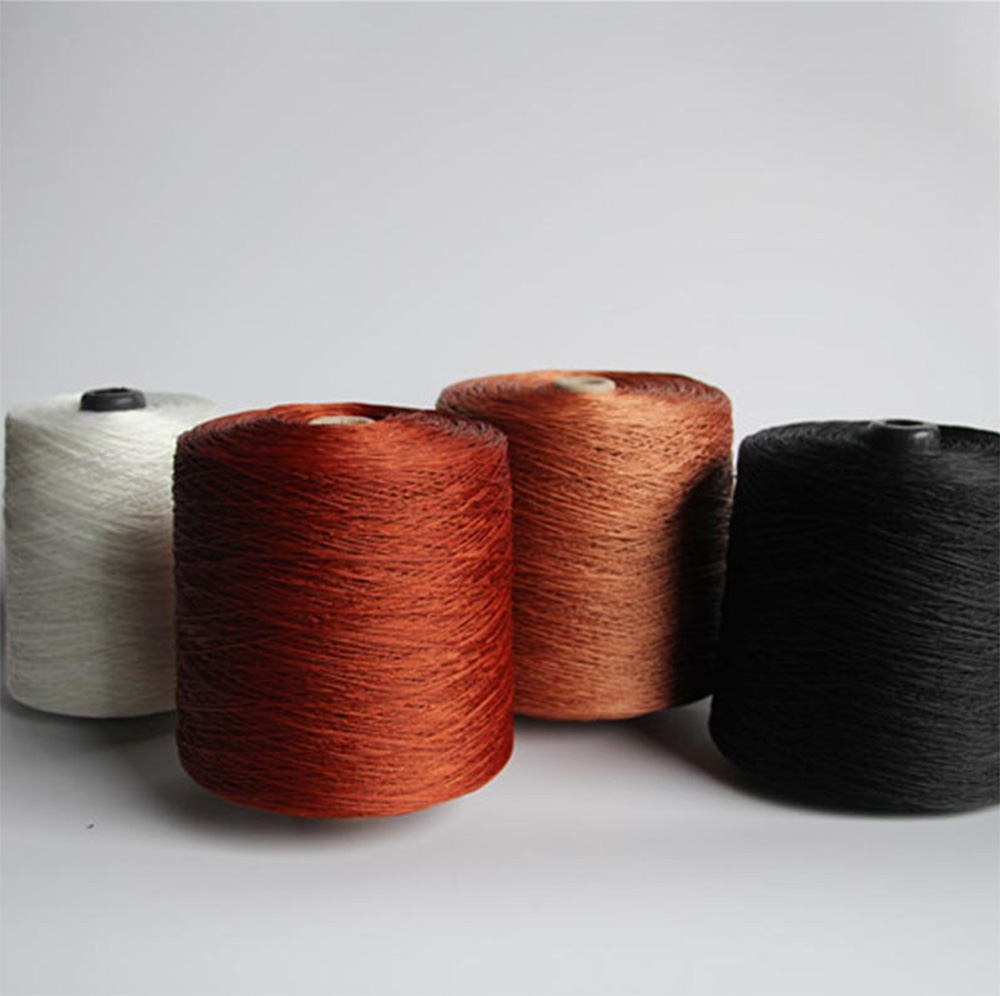

Packaging Options
| Package Type | Length Range | Best For |
|---|---|---|
| Standard cone (open-end) | 2,500 – 5,000 m | Most industrial machines |
| King spool | 5,000 – 10,000 m | High-volume automated lines |
| Cross-wound spool | 500 – 2,000 m | Short runs, sample testing |
| Custom winding | As required | Special machine requirements |
Colors:
White (standard)
Black (standard, best for UV grade)
Custom colors (volume orders, minimum quantity applies)
Why Choose Weixin High Tenacity Thread
| Criterion | Weixin Advantage |
|---|---|
| Strength | 30–60% higher than standard thread |
| Consistency | Batch-to-batch uniformity, ±2% tex tolerance |
| Low elongation | 14–16% at break – seams stay tight |
| Abrasion resistance | 3,000+ cycles – lasts longer in rough handling |
| UV options | ≥ 90% retention at 500h for outdoor use |
| Bonding options | Silicone or wax for high-speed or heavy fabrics |
| Quality | 100% visual inspection, full traceability |
| Technical support | Thread selection based on your application |
Case Example: FIBC Manufacturer Eliminates Bottom Seam Failures
Company: Bulk bag manufacturer producing 1.2 million FIBCs annually
Previous thread: Standard unbonded polyester (Tex 70)
Problem: 0.8% bottom seam failure rate during fill testing – bags failing at 1,500 kg test load
Investigation: Thread breaking strength measured at 3,600 cN (below specification). Elongation at break 19% – allowing seam slippage before thread fracture.
Solution: Weixin HT-70 high tenacity thread (silicone bonded)
Results:
Breaking strength: 4,400 cN (22% increase)
Elongation at break: 15% (tighter seams)
Bottom seam failure rate: reduced from 0.8% to 0.1% (87% reduction)
Thread breaks on automated lines: reduced by 60% (bonded coating)
Annual savings from reduced rework and returns: $52,000
Thread cost increase: $7,200
Net annual benefit: $44,800
The manufacturer converted all 12 production lines to Weixin HT-70 high tenacity thread.
Case Example: Tarpaulin Manufacturer Extends Product Life
Company: Truck tarpaulin manufacturer, outdoor covers
Previous thread: Standard polyester (Tex 60)
Problem: Customer complaints – seams failing after 12–14 months outdoor use. UV degradation weakened thread.
Solution: Weixin HT-60 UV-stabilized high tenacity thread (black)
Results:
UV retention at 500 hours: 92% (previous: 73%)
Field failure rate after 24 months: reduced from 12% to 3%
Warranty claims: reduced by 65%
Customer reorder rate: increased by 25%
Product warranty extended from 12 to 24 months
Ordering Information
To specify Weixin high tenacity thread, please provide:
Application – FIBC, tarpaulin, geotextile, lifting sling, etc.
Required strength – Bag capacity or seam load requirement
Sewing machine type – Speed, needle size, tension range
Environmental exposure – Indoor, outdoor, UV, chemicals
Preferred bonding – Unbonded, silicone bonded, wax bonded
Color – White, black, or custom
Package type and length – Cone, spool, king spool
Weixin will provide a thread recommendation, technical datasheet, and sample cones for testing.
Conclusion
When pressure builds – whether from fill weight, wind load, or dynamic tension – your seams must hold. Weixin High Tenacity Sewing Thread delivers the strength, low elongation, abrasion resistance, and UV protection that demanding applications require.
From FIBC bulk bags to tarpaulins, geotextiles to lifting slings – choose the thread that holds under pressure.
Choose Weixin High Tenacity.
Contact Weixin today to request sample cones, technical datasheets, or a side-by-side strength comparison against your current thread.
