For fleet operators and passenger vehicle manufacturers alike, premature tire failure represents an expensive operational hazard and a major safety liability. When an ultra-high-performance (UHP) or heavy commercial truck tire fails before its projected tread life ends, field engineers must conduct rigorous forensic examinations. A premium global tire manufacturer recently experienced a surge in warranty claims arising from localized carcass degradation, characterized by sudden sidewall bulges and high-speed cord blowouts.

The engineering failure analysis pointed directly away from compounding errors or simple puncture damage, identifying instead a failure at the primary reinforcement core: **premature fatigue separation of the tire carcass fabric layer**. This engineering case study explores how Weixin Fabric, an elite Chinese automotive tire carcass fabric manufacturer and technical solution expert, intervened to re-engineer the textile chemical interface, resolving the structural breakdown completely.

1. Forensic Diagnosis: Why the Carcass Separated

During forensic teardowns of the failed tire casings, engineers discovered microscopic stripping along the single multi-filament strands of the synthetic tire cord fabric. While the tread and belt rubber remained fully bonded, the internal skim rubber was completely unseated from the carcass core. The diagnostic team isolated two main processing flaws:

• Sub-optimal RFL Film Thickness: The client's legacy tire fabric featured an inconsistent Resorcinol-Formaldehyde-Latex (RFL) dipped film coating. Sections with thin coating coverage failed to protect individual filaments from shearing against adjacent cords during tire flexion.
• Filament Wetting Deficiencies: Due to improper dipping line tension and viscosity management, the chemical adhesive coating failed to penetrate deep into the structural core of the twisted cords, leaving the internal fibers exposed to high moisture and cyclic thermal stress.

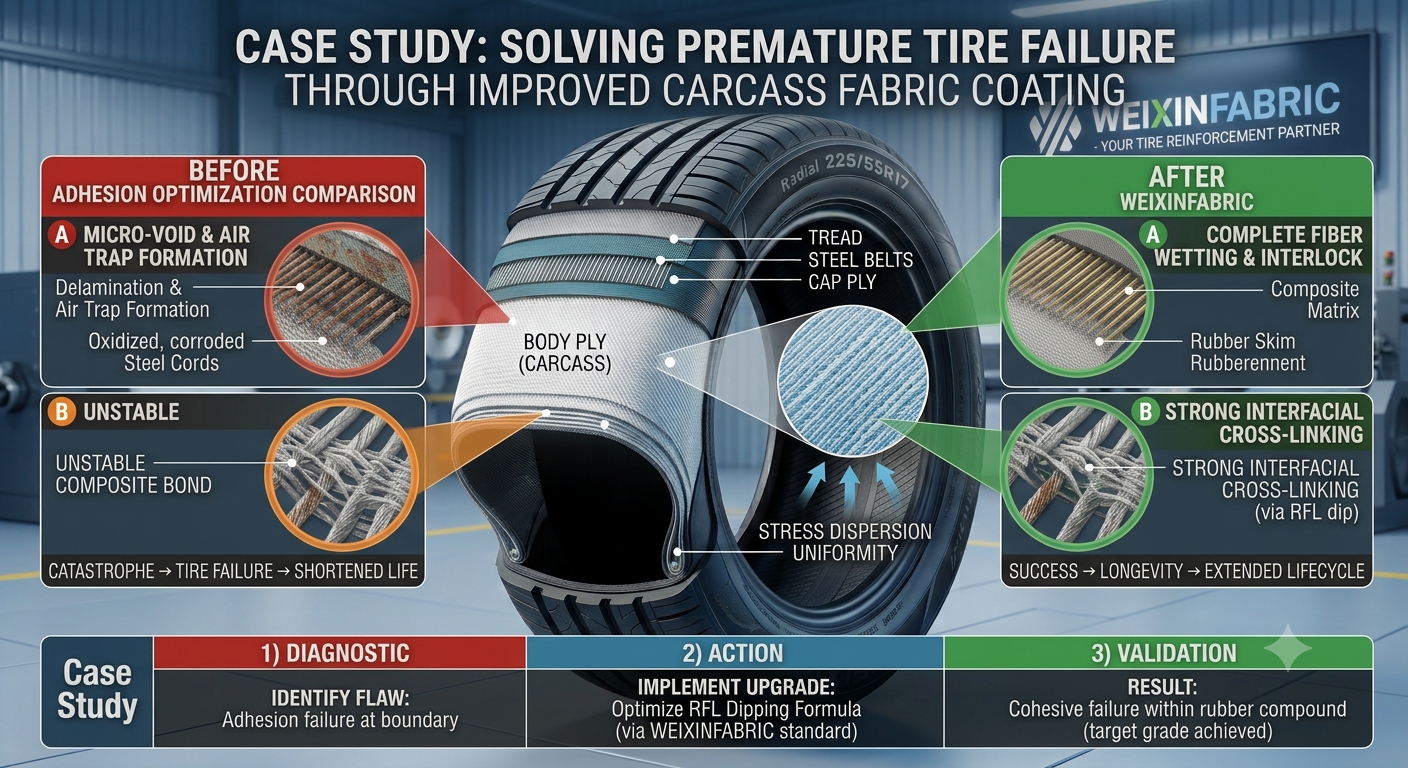

2. Structural Optimization Matrix: Re-Engineering the Interface

To eliminate tire structural breakdown and ensure uniform life cycles, Weixin Fabric’s engineering group replaced the standard material configuration with an advanced, custom-formulated reinforcement substrate:

3. Verification and Lifecycle Testing Results

The upgraded carcass fabric underwent rigorous mechanical testing inside the tire factory's quality assurance labs. The improvements were immediate and conclusive:

A. Enhanced Fatigue Endurance: In dynamic drum testing designed to simulate rough, overloaded road surfaces, the tires built with Weixin Fabric’s upgraded coating surpassed 450 continuous hours without a single incident of structural casing degradation (the previous baseline failed at 180 hours).

B. Superior Interfacial Adhesion: Peel tests confirmed that the structural bond between the carcass cords and the skim rubber advanced from an unstable 9.5 N/mm to a robust 16.8 N/mm, guaranteeing cohesive failure strictly within the rubber compound itself rather than along the fabric boundary.

Conclusion: Secure Your Casing Integrity with Weixin Fabric

This structural engineering case study proves that preventing premature tire failure requires a precise match between chemical surface preparation and high-tenacity textile substrates. Operating from our advanced manufacturing plant in China, Weixin Fabric provides specialized solutions for tire plants globally, focusing on eliminating structural field failures through optimized RFL fabric coatings.

Whether you are addressing premature failures in high-load truck lines (TBR), engineering reliable frames for passenger vehicle radials (PCR), or managing the severe torque loads of modern electric vehicles (EV), Weixin Fabric is your primary engineering partner. Contact our technical team in China today to request specialized product sheets, material matching analyses, and factory-direct technical consultations.
