In modern automotive tire engineering, the carcass reinforcement layer serves as the structural backbone of the entire tire assembly. It is responsible for containing internal inflation pressure, bearing heavy dynamic wheel loads, and enduring multi-axial forces under continuous cyclic flexing. While individual material selection (such as High-Tenacity Nylon 66 or High-Modulus Low-Shrinkage Polyester) establishes the baseline performance, the ultimate strength, burst resistance, and fatigue life of the carcass fabric depend fundamentally on tire cord uniformity.

Microscopic variations in cord linear density, twist symmetry, warp spacing, or tension across the fabric roll create localized stress concentrations. Under dynamic service conditions, these mechanical imbalances compromise interfacial adhesion and accelerate fatigue degradation. As a premier Chinese manufacturer specializing in high-performance automotive tire carcass fabrics, Weixin Fabric combines precision direct-cabling technology, automated tension-controlled warping, and optimized Resorcinol-Formaldehyde-Latex (RFL) dipping to achieve industry-leading cord consistency. This technical paper analyzes the physics of cord uniformity and its decisive role in maximizing carcass strength.

1. Engineering Metrics Defining Tire Cord Uniformity

Tire cord uniformity refers to the geometric, physical, and mechanical consistency of twisted synthetic multi-filament cords throughout the woven fabric web. Achieving high uniformity requires strict control over three primary parameters:

• Twist Level and Angle Balance (TPI / TPM): The twist multiplier dictates the trade-off between tensile modulus and fatigue resistance. Non-uniform twist distribution causes individual filaments to share applied loads unequally. Low-twist zones suffer premature tensile yield, whereas over-twisted sections lose effective axial stiffness.
• Linear Density Consistency (dtex / Denier Mass Tolerance): Fluctuations in mass per unit length across the warp sheet alter the rubber skim gauge during calendering. Uncontrolled linear density leads to irregular heat dissipation and uneven thermal expansion during tire vulcanization.
• Creel and Warping Tension Uniformity: Unequal yarn tension during beam warping creates differential slackness or pre-stretching among adjacent cords. During high-speed vehicle operation, tighter cords absorb disproportionate stress peaks, triggering sequential filament rupture.

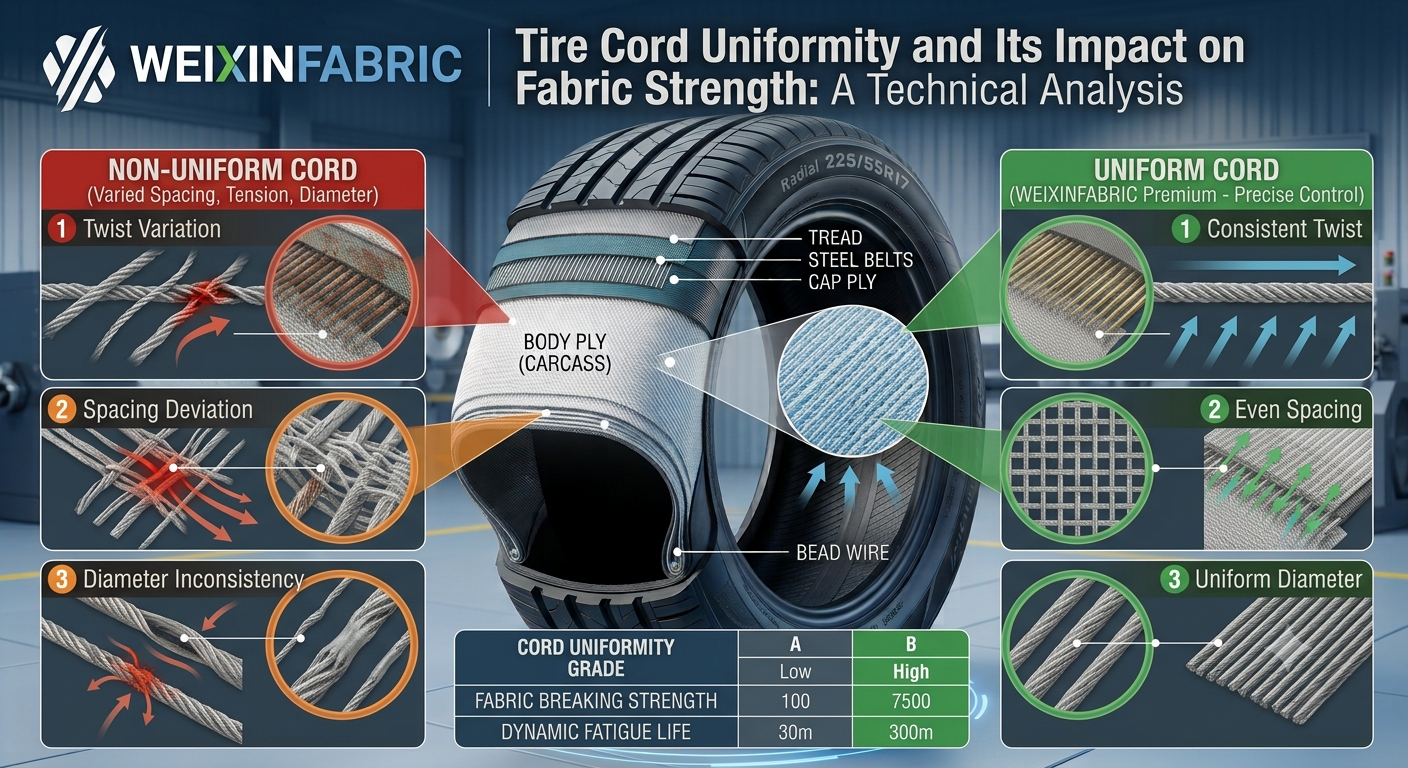

2. Mechanical Comparative Analysis: Uniform vs. Non-Uniform Fabrics

The comparative matrix below details how precision control over cord uniformity resolves systemic structural vulnerabilities commonly found in standard carcass reinforcements:

3. Structural Advantages for Global Tire Manufacturers

Integrating high-uniformity carcass reinforcement directly enhances downstream processing efficiency and field reliability for tire original equipment manufacturers (OEMs):

A. Prevention of Cord Wavering and Sidewall Bulges: Uniform cord density eliminates lateral displacement ("cord wavering") during rubber skim topping and green tire shaping. This ensures strict dimensional control, minimizing Radial Force Variation (RFV) and sidewall irregularities.

B. Maximized Casing Integrity and Retreadability: By mitigating localized structural degradation, tires engineered with Weixin Fabric carcass materials maintain casing durability over hundreds of thousands of kilometers, making them ideal for heavy commercial truck retreading.

Conclusion: Partner with Weixin Fabric for Automotive Reinforcements

Tire cord uniformity is not merely a manufacturing tolerance; it is the fundamental prerequisite for structural carcass strength, high-speed stability, and operational safety. Operating from advanced production facilities in China, Weixin Fabric combines modern textile machinery with rigorous quality engineering to deliver premier carcass fabrics to global tire manufacturers.

Partner with Weixin Fabric to elevate your tire performance standards, prevent premature carcass failure, and achieve optimal rubber-to-fabric adhesion. Contact our engineering team today for technical data sheets, customized cord specifications, and direct B2B consultation.
