When evaluating the performance, safety, and longevity of modern automotive tires, most consumer attention goes to the external tread pattern. However, the true strength of a tire lies beneath the surface. At the core of every high-performance radial and bias tire is the tire carcass fabric (often referred to as tire cord fabric or tire reinforcing fabric). It serves as the primary structural skeleton of the tire.

As a leading Chinese manufacturer specializing in high-tenacity industrial textiles, Weixin Fabric provides this in-depth technical guide to explain what tire carcass fabric is, how it is constructed, and why choosing the right engineered carcass reinforcement is vital for global automotive safety and efficiency.

1. Defining Tire Carcass Fabric: The Structural Backbone

Tire carcass fabric is a specialized high-strength industrial textile woven from heavy-duty synthetic yarns in the warp direction (longitudinal cords) held together by fine, highly elastic yarns in the weft direction. Rather than a traditional woven grid, it functions as a unidirectional reinforcement layer designed to handle extreme directional tension.

The primary functions of the carcass fabric inside a tire include:

• Retaining Internal Pressure: It contains the high-pressure compressed air that supports the entire vehicle weight.
• Withstanding Dynamic Forces: It absorbs violent impacts from potholes, debris, and uneven road surfaces.
• Maintaining Shape: It prevents the rubber compound from deforming or expanding under high rotational speeds and thermal stress.
• Power Transmission: It assists in transferring acceleration, braking, and steering forces from the wheel rim to the tread.

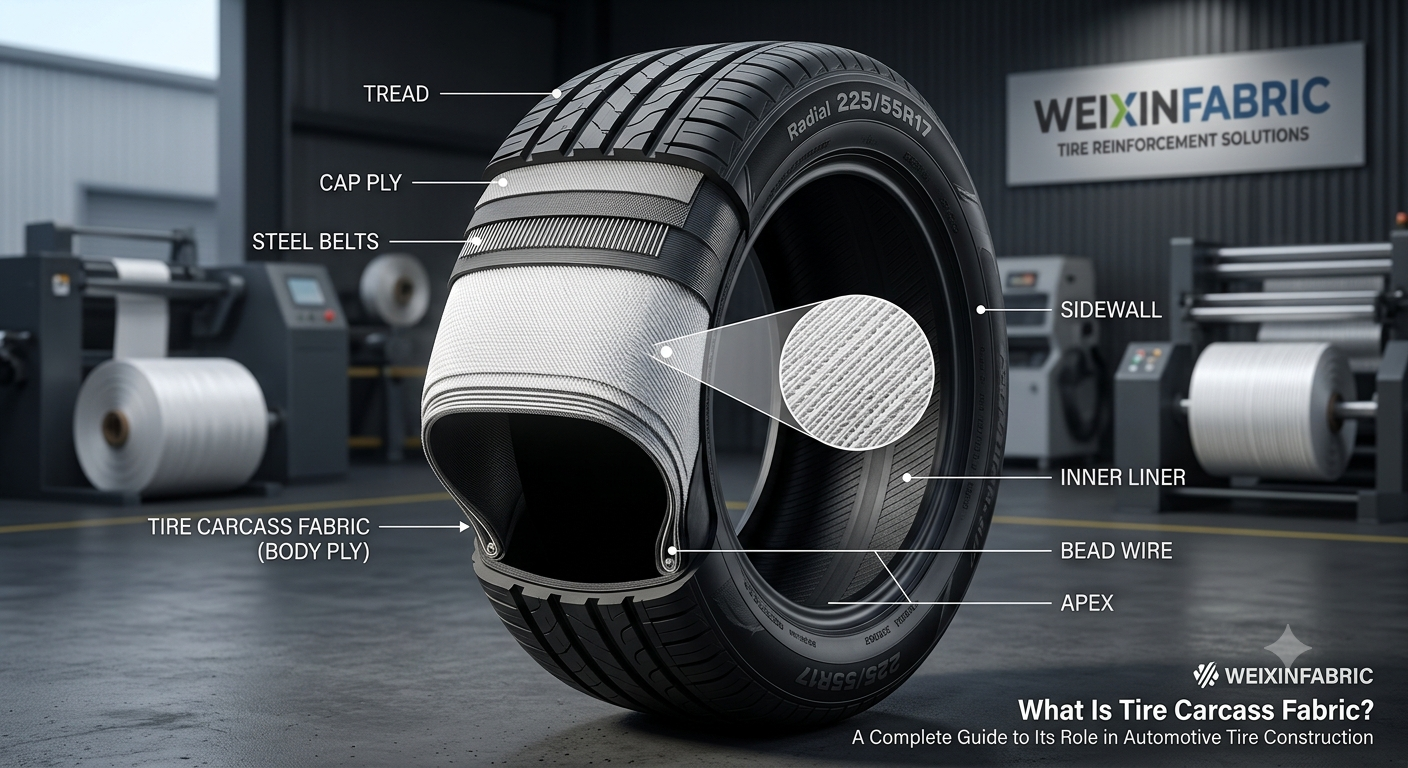

2. Anatomical Placement of Carcass Fabric in Tire Construction

Modern tires are composite structures consisting of multiple specialized layers. The carcass fabric is typically wrapped around the bead wire and forms the innermost ply of the tire casing.

3. Key Materials in Carcass Fabric: Nylon vs. Polyester

The performance of tire carcass fabric depends directly on the polymer utilized. As an expert in technical textile engineering, Weixin Fabric customizes cord formulations based on vehicle requirements:

A. Dipped Polyester Tire Cord Fabric (Conventional & HMLS)

Polyester has become the standard carcass material for passenger cars (PCR) due to its excellent dimensional stability, low thermal shrinkage, and resistance to "flat-spotting" (temporary tire deformation after parked periods).

• HMLS (High Modulus Low Shrinkage) Polyester: This is the premium choice for high-speed radial tires. It provides high modulus (stiffness) under tension while maintaining minimal thermal shrinkage under high-speed operating temperatures.

B. Dipped Nylon 6 & Nylon 66 Tyre Cord Fabric

Nylon possesses outstanding fatigue resistance, superior elasticity, and high impact-strength retention. It is the premier choice for heavy-duty applications:

• Nylon 6: Extensively used in bias tire carcasses, agricultural tires, OTR (Off-The-Road) mining vehicles, and light truck tires.
• Nylon 66: Offers a higher melting point and superior heat resistance, making it ideal for high-speed racing plies, aircraft tires, and heavy commercial vehicle casings.

4. The Importance of the "Dipping" Process (RFL Treatment)

Raw synthetic fibers (greige fabric) do not bond naturally with rubber compounds. Unbonded fiber layers would slip, causing immediate tire delamination and catastrophic failure. To prevent this, the tire carcass fabric must undergo a sophisticated chemical coating called the RFL (Resorcinol-Formaldehyde-Latex) dipping process.

The RFL dip acts as a molecular bridge: the formaldehyde-resorcinol resin cross-links with the synthetic nylon or polyester fibers, while the latex matrix vulcanizes directly with the surrounding tire rubber compound during tire curing. Weixin Fabric utilizes advanced, precision-controlled dipping lines to ensure exceptional peel adhesion strength, dynamic fatigue resistance, and thermal aging stability.

5. Weixin Fabric: Your Trusted Automotive Tire Carcass Solution Partner

As a professional manufacturer based in China, Weixin Fabric combines state-of-the-art weaving technologies with precision chemical dipping lines to supply high-quality tire reinforcing fabrics globally. Our engineering focus ensures:

• Optimized Breaking Strength: High-tenacity yarns capable of sustaining maximum inflation and loading limits.
• Custom Specifications: Available in various linear densities including Nylon 840D/1, 1260D/1, 1680D/1, 1890D/1, and Polyester 1000D/1, 1500D/1, and 2000D/1 formulations.
• Excellent Adhesion: Superior RFL chemical treatment customized to match diverse client rubber compounds.
• Consistent Tension Control: Minimizes tire distortion during assembly, improving production yield for tire factories.

For tire manufacturers looking to upgrade their carcass integrity, lower rolling resistance, or customize reinforcing fabrics for electric vehicle (EV) tires, Weixin Fabric delivers engineered solutions designed for the future of mobility.
